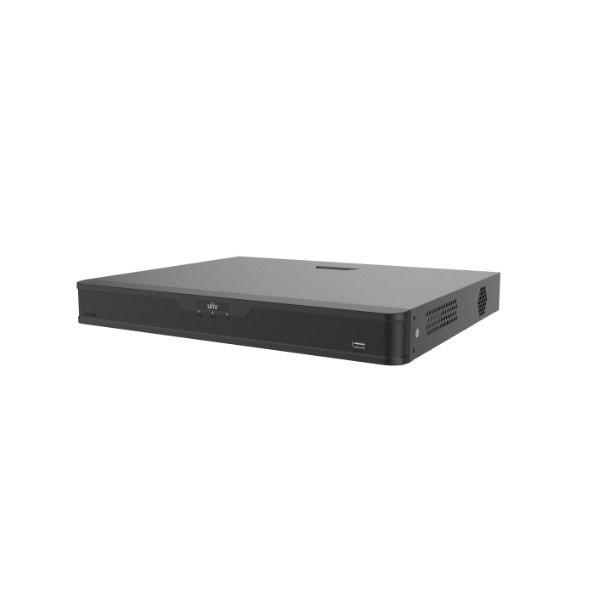

UNV (NVR302-16B-P16-IQ) 2 HDDs 16-ch 16 PoE 1U Network Video Recorder
Brand: Uniarch
#
Networking Devices
रु 19,499
Only 1 in stock
Product Details of UNV (NVR302-16B-P16-IQ) 2 HDDs 16-ch 16 PoE 1U Network Video Recorder
Specification | Details |
|---|---|
Model | NVR302-16B-P16-IQ |
Series | Easy Series – 2 HDDs, 16-ch, 16 PoE |
Video Input | 16 IP channels with 16 independent PoE ports supporting IEEE 802.3af/at (max ~30W per port, total ~240W) |
Supported Video Formats | Ultra 265, H.265, H.264 |
Maximum Recording Resolution | Up to 12 MP per channel |
Decoding Capability | Smart Off: up to 2×12MP@30, 2×4K@30, 4×4MP@30, 10×1080P@30, 16×720P@30; Smart On: up to 2×4K@30, 4×4MP@30, 8×1080P@30, 16×720P@30 |
Audio Compression | G.711A, G.711U |
Network Bandwidth | Incoming: 160 Mbps; Outgoing: 128 Mbps |
Remote Users Supported | Up to 128 users |
Video Outputs | 1× HDMI (up to 4K), 1× VGA (various resolutions) |
Audio I/O | 1× RCA audio input, 1× RCA audio output; 1-ch two-way audio |
Storage | 2× SATA HDDs (up to 10 TB per HDD) |
USB Ports | USB ports (typically 1× USB3.0 + 1× USB2.0) |
Network Port | 1× RJ45 10/100/1000 Mbps |
Protocols Supported | ONVIF (S/G/T), RTSP, TCP/IP, DHCP, PPPoE, HTTP/S, DNS, DDNS, SNMP, SMTP, IPv4/IPv6 |
Smart Features | Face detection, vehicle detection, smart intrusion, ultra motion detection, people counting, traffic monitoring and related search functions |
ANR Support | Yes – enhances storage reliability if network disconnects |
Live Display Layouts | Up to 16-way, multiple corridor modes |
Alarm & Events | Motion detection, tampering, video loss, scene change, object left/removed, IP conflict, disk errors, etc. |
Operating Conditions | Temperature: ~-10 °C to +55 °C; Humidity: ≤ 90 % non-condensing |
Dimensions | ~380 × 322 × 53 mm |
Weight (No HDD) | ~≤ 2.7 kg |
Certifications | CE, FCC, UL, RoHS, WEEE |
Other Features | Plug-and-play PoE, ANR, cloud upgrade support |
